Steel Strip Tolerances Narrow Coil

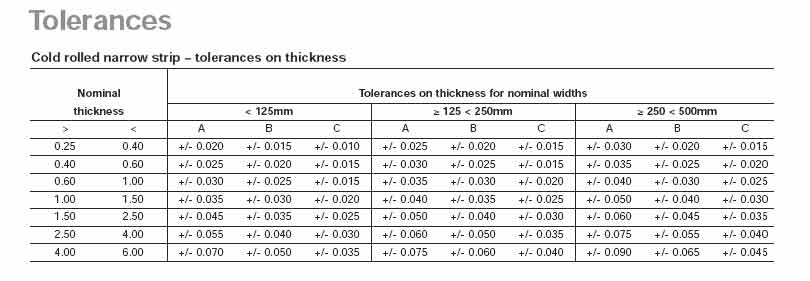

Tolerances on thickness for cold rolled strip on a narrow mill

The tolerances above are according to EN10140 1997

All the various steel standards around the world have different standard tolerances on width and thickness. We are only illustrating the Euronorm tolerances. It is therefore important to check the relevant standards for any particular application. These will be readily provided by the steel supplier.

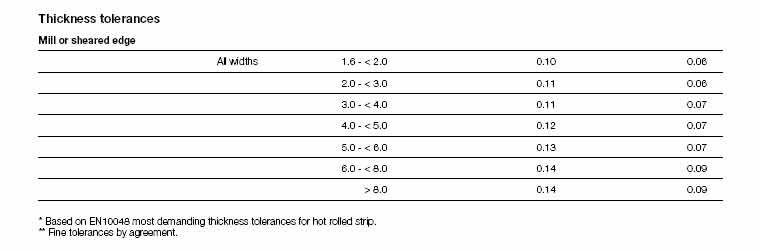

     Tolerances on thickness for hot rolled strip on a narrow mill


The tolerances above are based on EN10048
